hip templating

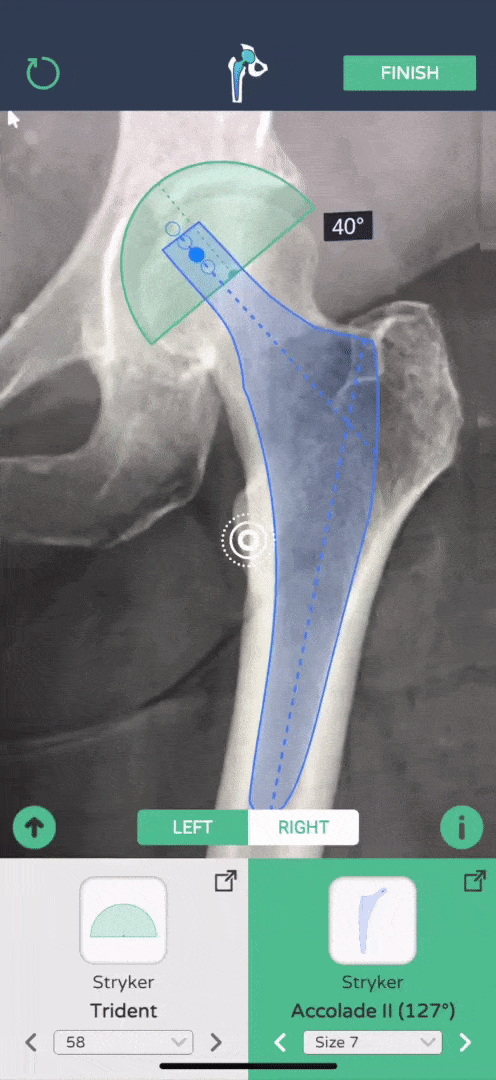

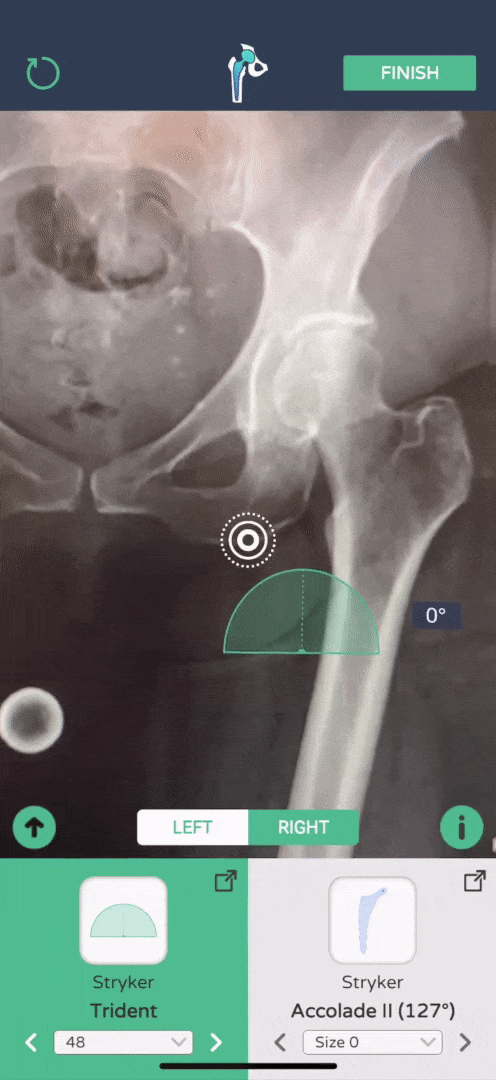

  • Once AR-target is active, press the implant image to make it appear on the screen.

  • Use the Left/Right button to change the orientation of the implants.

  • Drag the implant with 1 finger, and rotate the implant by moving 2 fingers either up or down on the screen to rotate the implant counter-clockwise (↑) or clockwise (↓).

  • To change the implant size, use the drop-down or arrows at the bottom of the screen.

Create your

template

1

2

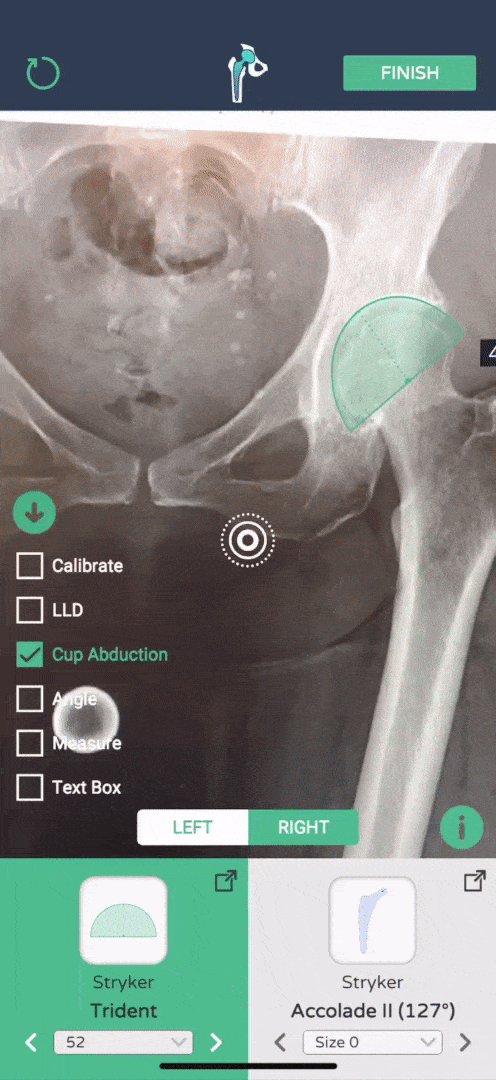

Hip Features

  • Press the up arrow to view available features, and Press the down arrow to minimize.

  • Select the Calibrate option to recalibrate your x-ray using the AR calibration marker.

3

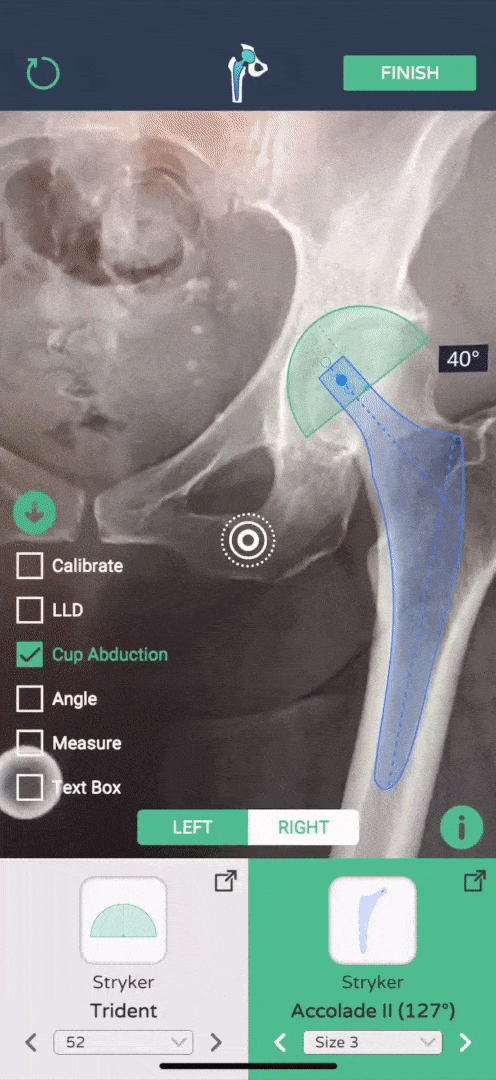

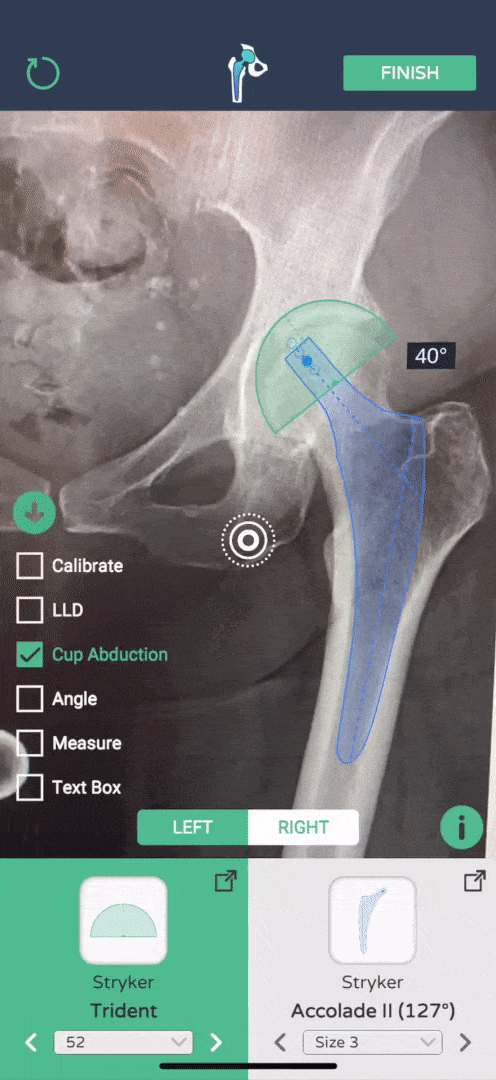

Cup Abduction



  • The cup abduction angle is active by default.

  • Drag 2 fingers vertically either up or down on the screen to rotate the cup counter-clockwise (↑) or clockwise (↓)

4

LLD



  • Press the LLD button to activate.

  • Measure the vertical distance between 2 landmarks (ischial tuberosity, etc.) to calculate the absolute leg length discrepancy.

  • For clinically significant LLD, we recommend noting L>R or R>L in the text box based on your judgement.

  • To continue templating, you must press the LLD button again to deactivate.

5

Angle



  • Press Angle to activate.

  • Measure the angle between 3 points by positioning the red target and pressing the red button to place each point.

  • To delete an angle, press the red minus button.



  • To continue templating, you must press the Angle button again to deactivate.

Measure



  • Press the Measure button to activate.

  • Measure the distance between 2 points by positioning the red target and pressing the red button to place each point.

  • To delete a line, press the red minus button.

  • To continue templating, you must press the Measure button again to deactivate..

6

7

Text Box

  • Press the Text Box button to activate.



  • Press the actual text box open the keyboard and type any notes for the case.
